Eichler Sliding Doors: Replacing Patio Doors


It was time to rid of our white vinyl sliding doors that came with the house. These aren't one of these doors you can pick up at The Home Depot or Lowes. As you can see, the previous owner grabbed something off the shelf, a standard vinyl slider that didn't exactly fit, which inspired some post cutting, lots of shimming and trim work. The original transom was taken out and drywalled over. eichler-vinyl-slider



Comparing Slide Door Options for Eichlers

1. Arcadia Sliding Doors

arcadia-sliding-door-5000-Series-01

Eichler homes were built with Arcadia doors, and although they are still in business, mainly doing commercial applications, they still sell a line of doors that will work. The 5000 Series of doors were available through Eichler Solutions. One of the principals visited and quoted us about $3,200 for the door and transom. These are pretty awesome doors, as our neighbor had them installed all around the house and they look and function great.

2. Western Windows / Blomberg Sliding Doors

blomberg-sliding-door-quote

Western also sent out Bob from Associated Building Supply out to quote us a Blomberg Series 600 door, also around $3,000 with the transom.

3. Milgard Sliding Doors

At the Concord Eichler yard sale fest, we happened to pick up a free Milgard door that fit perfectly into one of our openings. The previous owner explained how it came with the house and was purchased, but never installed. We figured to give it a go and if it worked out, order more of them. After a successful install, we got a quote from Dolan Lumber for $1,100.

The Dolan Sale Rep also mentioned higher end doors from Fleetwood, so I'm sure that would be a good option as well.

Removing the Old Door

This was fairly straightforward, as we cut the fins, removed screwed, peeled back adhesive, and popped the door out. There was also vinyl and aluminum siding to remove from the eves an posts (in case you're wondering what all that stuff is hanging from the eves).

eichler-sliding-door-removal

Installing the New Sliding Door

  1. Prepared the framing, cleaned up the posts
  2. Prepared the sill with redwood and flexible membrane
  3. Assembled the Milgard aluminum frame
  4. Mounted the frame - caulked, leveled and shimmed
  5. Installed the panels and hardware
  6. Frame the transom
  7. Installed the glass
  8. Finished the interior door trim

eichler-sliding-door-milgard-sill-install

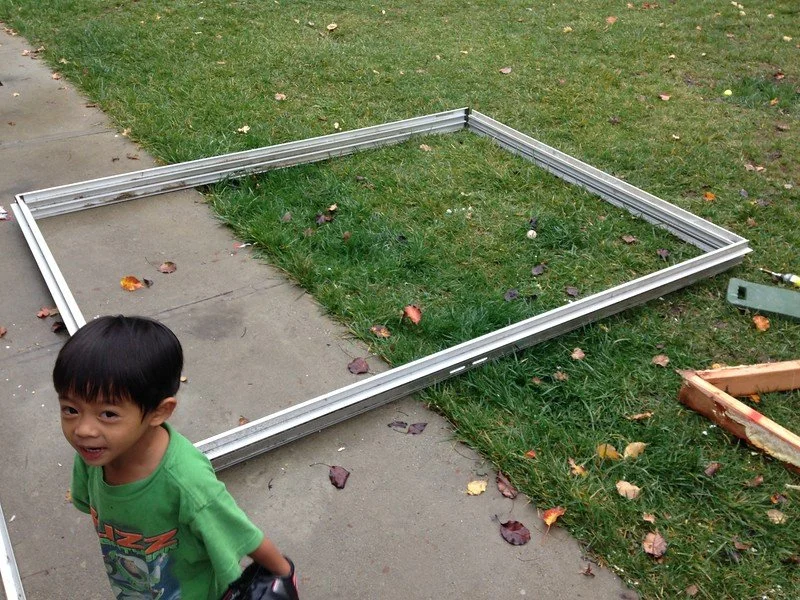

eichler-sliding-door-milgard-frame

eichler-sliding-door-milgard-frame-install

eichler-sliding-door-milgard-2

eichler-sliding-door-milgard-transom-framing

eichler-sliding-door-milgard-transom-karen

eichler-sliding-door-milgard-transom

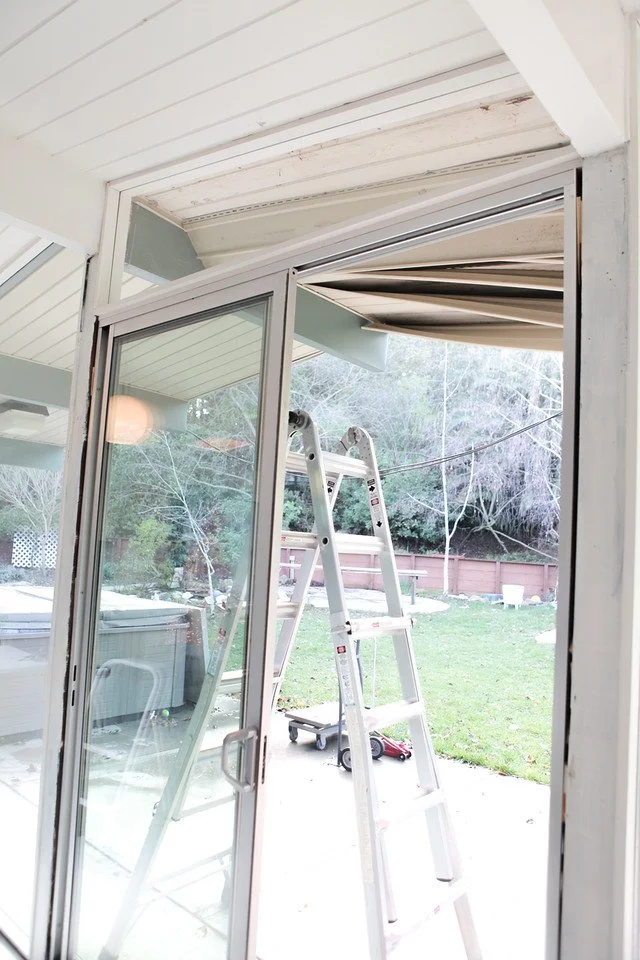

eichler-sliding-door-milgard-rough-install

eichler-sliding-door-milgard-handle

The Milgard door we got at a garage sale didn't come with an interior handle, strike plate, or stopper. We called Milgard directly, and because of the 10 year transferrable warranty, they sent us all the parts for free. Great customer service!

milgard-sliding-patio-door-eichler



eichler-kitchen-remodel-final-low-res1
